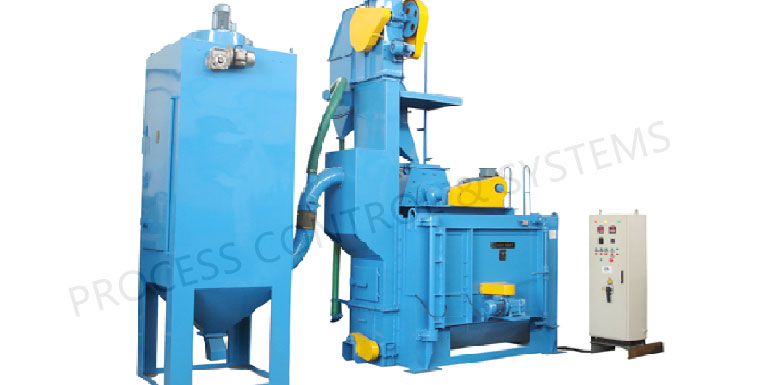

Swing Table Type Shot Blasting Machine

Swing Table Type Shot Blasting Machine

Swing Table Type Shot Blasting Machine

Price Range : ₹ 6Lac to 12Lac

As a swing table type shot blasting machine manufacturer, we pride ourselves on delivering high-quality, reliable equipment designed to meet the diverse needs of various industries. Our airless shot blasting machines are engineered for efficiency and precision, ensuring optimal surface preparation for your critical projects.

Our swing table type shot blasting machines are specifically designed to handle a wide range of applications, from removing rust and scale to preparing surfaces for coating. The innovative swing table design allows for easy loading and unloading of workpieces, ensuring a seamless operation that maximizes productivity and minimizes downtime. With a focus on durability and performance, our machines are built to withstand the rigors of heavy-duty use while delivering consistent, high-quality results.

At Process & System, we understand that every project is unique, which is why our airless shot blasting machines are customizable to meet your specific requirements. Whether you’re in the automotive, aerospace, or construction industry, our machines offer the versatility and efficiency you need to achieve exceptional surface finishes.

Choose Process & System as your swing table type shot blasting machine manufacturer and experience the difference that precision engineering and dedicated customer service can make. Let us help you take your surface treatment processes to the next level with our state-of-the-art shot blasting solutions.

Applications of Swing Table Type Shot Blasting Machines

Swing table-type shot blasting machines from reputable manufacturers play a crucial role in various industries. These machines are designed to clean, strengthen, and polish metal surfaces, making them indispensable in settings where precision and surface integrity are paramount. Here are some key applications:

  1. Automotive Industry: In the automotive sector, table type shot blasting machines are used to clean and prepare components such as engine blocks, cylinder heads, and other cast parts. The process removes rust, scale, and other contaminants, ensuring that parts meet stringent quality standards and enhancing their performance and lifespan.
  2. Aerospace Industry: Aerospace components require impeccable surface integrity and cleanliness. Swing table type shot blasting machines are employed to treat turbine blades, landing gear components, and other critical parts. The blasting process helps in stress-relieving the components and improving their fatigue resistance, which is vital for the safety and reliability of aerospace machinery.
  3. Foundries and Forging: In foundries and forging plants, table type shot blasting machines are essential for cleaning castings and forgings. These machines efficiently remove sand, scale, and excess material from surfaces, ensuring a smooth finish and preparing the items for further processing or inspection.
  4. Metalworking and Fabrication: Metal fabricators use table type shot blasting machines to clean and prepare metal sheets, plates, and fabricated structures. The machines are ideal for removing welding slag, rust, and old paint, providing a clean surface for painting, coating, or further fabrication processes.
  5. Railway and Shipbuilding: The railway and shipbuilding industries utilize these machines to maintain and refurbish large metal components. For example, swing table type shot blasting machines are used to clean and prepare train wheels, ship hulls, and other large structures, ensuring they are free from corrosion and other surface imperfections.
  6. Steel Mills and Structural Steel Applications: In steel mills, table type shot blasting machines are used to descale and clean steel plates, beams, and profiles before they are coated or further processed. This ensures that the steel surfaces are free from impurities, which can affect the quality of welding and coating applications.

Benefits of Swing Table Type Shot Blasting Machines

Selecting a swing table type shot blasting machine from a reputable manufacturer ensures several benefits:

  • Enhanced Efficiency: These machines are designed for high throughput, reducing processing time and increasing productivity.
  • Versatility: Capable of handling a variety of shapes and sizes, making them suitable for diverse applications across industries.
  • Quality Surface Preparation: Delivers consistent and uniform cleaning, crucial for applications requiring high surface quality.
  • Durability and Reliability: Machines from top manufacturers are built to withstand rigorous use, ensuring long-term performance and minimal downtime.

By investing in a swing table type shot blasting machine, industries can achieve superior surface preparation, enhancing the quality and longevity of their products.

Features of Swing Table Type Shot Blasting Machines

As a leading swing table type shot blasting machine manufacturer, we are committed to delivering superior quality, performance, and value. Here are the primary features that we deliver.

  1. High-Quality Construction: Crafted with durable materials and precision engineering, our machines ensure reliability and longevity even in the most demanding environments.
  2. Swing Table Design: Our innovative swing table design offers versatility and ease of use. With adjustable speed and angle controls, you can tailor the blasting process to suit your specific requirements.
  3. Efficient Shot Blasting: Powered by advanced technology, our machines deliver exceptional shot blasting performance, removing rust, scale, and contaminants from surfaces with speed and precision.
  4. Customizable Options: We understand that every project is unique. That's why our swing table shot blasting machines come with customizable options, allowing you to tailor the equipment to your exact specifications.
  5. Easy Maintenance: Designed for hassle-free maintenance, our machines feature accessible components and user-friendly interfaces, minimizing downtime and maximizing productivity.
  6. Safety Features: Safety is our top priority. Our swing table shot blasting machines are equipped with a range of safety features to protect operators and ensure compliance with industry regulations.
  7. Expert Support: From installation and training to ongoing support and maintenance, our team of experts is here to help you get the most out of your equipment.

Swing Table Shot Blasting Machines Price

As the leading manufacturer and supplier of swing table shot blasting machines in India, we take pride in offering top-quality products at competitive prices. Our swing table shot blasting machines come in various types and sizes to meet diverse industrial needs. The price for these machines ranges from INR 6 to 12 Lakh, making our offerings highly affordable compared to others in the market. Whether you are looking for a specific type or size, our pricing ensures you get the best value for your investment in a swing table shot blasting machine.

Table Shot Blasting Machine in India

The Table Type Shot Blasting Machine, also known as a Swing Table Shot Blasting Machine, is designed with one or two rotary tables for loading components. The table elevates on the door and swings inside the cabin, where the blast wheel on top cleans the component. This swing table can rotate both clockwise and counterclockwise to ensure thorough cleaning. Components need to be placed upside down so that the bottom can also be cleaned by the shot blasting process.

The machine features a round table on which materials or components are placed inside the Cabinet type abrasive blaster Machine. As the swing table rotates vertically, it exposes the components to the blast stream from the blast wheel. To reduce cycle time, these machines also include an additional table hinged to them. This second table is positioned on the opposite side of the opening, allowing for simultaneous offloading and loading while blasting is in progress on the first table. Our Table Shot Blasting Machines are offered at very competitive prices.

These machines are versatile and suitable for larger-sized, medium, or heavyweight castings, forgings, heat-treated work, and welded or bolted structures. Components such as engine blocks, transmission housings, head wheels, and crankshafts can be effectively blast-cleaned. The Table Airless Shot Blasting Machine is noted for its functionality, durability, effectiveness, and excellent finish, along with a long operational life. Our machines are highly regarded and demanded by customers in global markets, standing out among our competitors. Additionally, we provide a full range of shot blasting and Airless spray painting machines.

Technical Specification For Swing Table Type Shot Blasting Machines :

Particulars AST-750 AST-900 AST-1200 AST-1800 AST-2440
Size of Blast Wheel 12.5" X 2.5" 12.5" X 2.5" 19.5" X 2.5" 19.5" X 2.5" 19.5" X 2.5"
No. of Blast Wheel One One One One Two
No. of Swing Table (as per demand) One / Two One / Two One / Two One / Two One / Two
Diameter of Swing Table 750mm (30") 900mm (36") 1200mm (48") 1800mm (72") 2440mm (96")
Maximum Load on Table 350 Kg. 400 Kg. 750 Kg. 2500 Kg. 4500 Kg.
Loading Height (mm) 1125 1000 950 950 1200
Maximum Job Height (mm) 300 500 600 1000 1060
Type of Dust Collector (as per demand) Plain Fabric Bag/
Pleated Bag
Plain Fabric Bag/
Pleated Bag
Plain Fabric Bag/
Pleated Bag
Plain Fabric Bag/
Pleated Bag
Plain Fabric Bag/
Pleated Bag
Total Required Power (H.P.) 12 16 23 36 56
Height of the Machine 4100mm 4100mm 4300mm 5500mm 5750mm
Requirement of Pit No No No No No

36-inch Diameter (900 mm) Single or Double Door Configuration

Capacity: Approximately 350 Kg

In a swing table type shot blasting apparatus, the work table, which rotates items beneath the abrasive stream, pivots outward upon door opening. This design allows complete accessibility to the entire table surface, facilitating swift loading and unloading. An additional door can be incorporated to augment production efficiency.

48-inch Diameter (1200 mm) Single or Double Door Configuration

Capacity: Approximately 800 Kg

This widely favored table-shot blasting apparatus is ideal for cleansing motor bodies, pump casings, oil engine components, and forgings. Many users employ it for surface preparation before rubberizing and powder coating. The machine is equipped with an RLM wheel and a soundabrator to minimize noise. The table top is constructed from Nihard material, and the bottom perforated plate is made of manganese steel, ensuring the longevity of the equipment.

A pitless design eliminates the need for costly pit construction, and sufficient work height clearance accommodates a diverse range of tasks. The machine is available in two models, offering work height clearances of either 24 inches (600 mm) or 48 inches (1200 mm).

72-inch Diameter (1800 mm) Swing Table Single or Double Door Configuration

Capacity: Approximately 2300 Kg (Optional Second Door Available)

The swing table shot blasting machine provides significant advantages, such as eliminating the need for expensive pit constructions. The machine can be relocated easily and handles a wide variety of tasks. It is powered by a 20 hp RLM wheel and equipped with a soundabrator. This machine is suitable for cleaning heavy castings, such as machine tool bodies, pump casings, and fabricated steel frames.

  • Durable, long-life wheel components, including blade, impeller, and control cage.
  • Constructed from alloy steel for extended durability.
  • The wheel liner thickness is 25 mm, and it has a hardened alloy table top instead of a rubber top.
  • 25 mm thick alloy liners in the direct blast area.
  • Bottom perforated grating made of manganese steel.

96-130 inch Diameter (2400 mm/3300 mm) Swing Table Single and Double Door Configuration

Capacity: Approximately 4500 Kg to 5000 Kg (Optional Second Door Available)

The swing table shot blasting machine, driven by two RLM wheels measuring 19 ½ inches (497 mm) and powered by two 25 hp motors, is suitable for large railway components, forgings, compressor castings, and heavy components up to 5000 Kg. Opening the door exposes the work table for loading or unloading. When the door is closed, the work is positioned beneath one or more wheel units for thorough abrasive exposure. A compressed air touch-up facility is available.

The pit-less design provides adequate work height clearance, replacing the need for an air blast room. It handles a wide range of tasks, allowing operators to work outside the cabinets. The machine operates airlessly, making it cheaper, faster, more efficient, and it saves power, labor, and space.

Process & System: Your Source for Quality Swing Table Type Shot Blasting Machines

For factory owners and those involved in the manufacturing of durable infrastructure or concrete buildings, high-tech machinery is a crucial focus. We are dedicated to meeting the exacting standards and requirements set by our global clientele. Our Swing Table Type Shot Blasting Machines are designed to cater to the diverse needs of customers worldwide.

We understand the importance of reliable and advanced machinery in achieving superior results. Our Swing Table Type Shot Blasting Machines are crafted with precision to ensure optimal performance, longevity, and efficiency. These machines are engineered to handle the rigorous demands of various industries, providing exceptional surface preparation and finishing.

When you choose Process & System, you are partnering with a company that prioritizes quality and customer satisfaction. Our commitment to innovation and excellence ensures that you receive the best possible equipment for your production needs. Trust us to supply the top-quality Swing Table Type Shot Blasting Machines that will enhance your manufacturing processes and deliver outstanding results.

Swing Table Type Shot Blasting Machine Manufacturers In India

Process & System specializes in the manufacturing of various types of airless shot blasting machines in India, tailored to the specific requirements of our customers. Our machines are distributed across India and worldwide, serving diverse industries, including casting, forging, and aluminum casting. Renowned as the premier manufacturer of Table Shot Blasting Machines in India, we offer top-quality products at competitive prices. Additionally, we are proud suppliers and exporters of portable shot blasting machines, shot blasting cabinets, shot blasting rooms, tumblast shot blasting machines, thermal spray guns, zinc spray guns, arc spray guns, flame spray guns, thermal spray wires, babbit wires, and abrasive media, all available at affordable prices.
