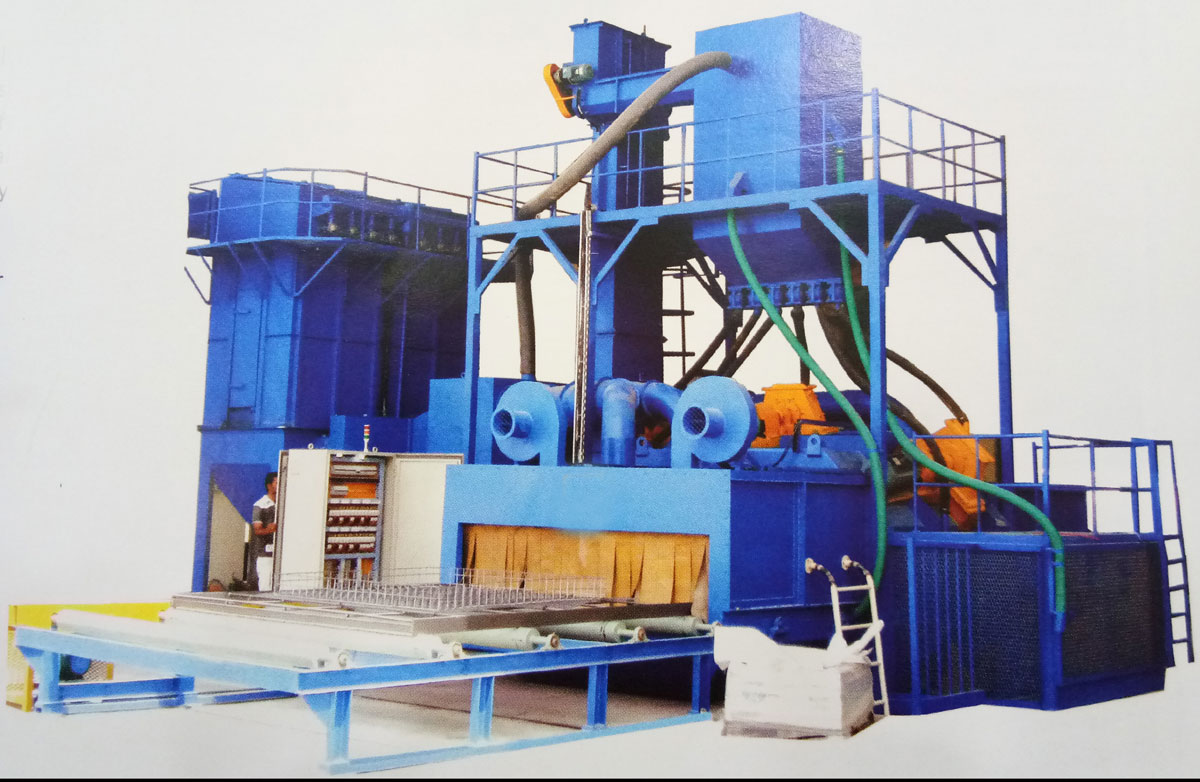

![Airless Tunnel Type Shot Blasting Machines Manufacture in india Airless Tunnel Type Shot Blasting Machines](assets/images/airless-tunnel.jpg)
Airless Tunnel Type Shot Blasting Machines Manufacture
As seasoned manufacturers and suppliers, we deliver top-tier solutions that redefine industrial surface preparation.
Our tunnel-type shot-blasting machines are engineered with a focus on performance, reliability, and efficiency. Designed to meet the rigorous demands of various industries, including automotive, aerospace, and manufacturing, our equipment ensures superior surface treatment outcomes. What sets us apart at Process & System is our dedication to providing not just cutting-edge technology, but also unmatched service and support. From customized solutions to ongoing maintenance, we are committed to partnering with you every step of the way to maximize your operational success.
How It Works: Airless Tunnel Type Shot Blasting Machine
A tunnel-type shot blasting machine operates on the principle of high-speed abrasive particles impacting the surface of the workpiece to achieve various surface preparation objectives such as cleaning, descaling, deburring, and surface finishing. Here’s a step-by-step breakdown of its operation:
- Loading and Transport System: Workpieces are loaded onto a conveyor system that moves them through the tunnel type shot blasting machine. The conveyor speed can be adjusted to control the exposure time of the workpiece to the blasting operation.
- Blasting Chamber: As the workpieces enter the blasting chamber, they pass beneath multiple blast wheels strategically positioned around the chamber. Blast wheels are equipped with high-speed impellers that propel abrasive media, such as steel shot or grit, toward the surfaces of the workpieces.
- Abrasive Media Propulsion: The abrasive media, accelerated by the blast wheels, impacts the workpiece surfaces at high velocities. This impact removes scale, rust, old paint, and other contaminants from the workpiece surface, preparing it for subsequent processes like painting or coating.
- Dust Collection and Recovery: Simultaneously, a powerful dust collection system removes the dust and debris generated during the blasting process. The collected abrasive media and debris are separated, with the reusable abrasive media being recycled back into the system for continued use.
- Workpiece Exit and Unloading: After passing through the blasting chamber, cleaned and prepared workpieces exit the machine. They may proceed to additional processing stages or be unloaded for further inspection or packaging.
Features of Tunnel Type Shot Blasting Machines
As a leading manufacturer and supplier of industrial surface preparation equipment, Process & System takes pride in offering cutting-edge tunnel type shot blasting machines designed to meet the diverse needs of modern manufacturing environments. Our machines boast:
- Robust Construction: Engineered with durable materials and advanced manufacturing techniques to ensure longevity and reliability in demanding industrial settings.
- High-Performance Blast Wheels: Precision-engineered blast wheels that deliver consistent and powerful abrasive media propulsion for thorough surface cleaning and preparation.
- Versatile Conveyor Systems: Customizable conveyor systems that accommodate various sizes and shapes of workpieces, providing flexibility in production processes.
- Efficient Dust Collection Systems: Integrated dust collection systems that effectively capture dust and debris, maintaining a clean working environment and maximizing abrasive media reuse.
- User-Friendly Controls: Intuitive control interfaces that simplify operation and monitoring, enhancing ease of use and productivity on the shop floor.
- Safety Features: Built-in safety features, including emergency stop systems and protective barriers, to ensure operator safety and compliance with industry standards.
Benefits of Airless tunnel type shot blasting machines
Process & System's tunnel type shot blasting machines offer a multitude of benefits designed to enhance your manufacturing operations and surface preparation processes:
- Enhanced Productivity: Maximize throughput and reduce downtime with our high-performance machines, ensuring efficient surface preparation and improved workflow.
- Superior Surface Quality: Achieve consistent and high-quality surface finishes, enhancing product aesthetics and ensuring optimal adhesion for coatings and treatments.
- Cost Savings: Optimize resource utilization with efficient abrasive media recycling and minimal maintenance requirements, resulting in reduced operating costs over time.
- Reliability and Support: As your trusted partner, we provide comprehensive support throughout the equipment lifecycle, including expert installation, training, and ongoing technical assistance.
Technical Specifications of Our Tunnel Type Shot Blasting Machine
Know the technical specifications of Process & System's tunnel type shot blasting machines below. Engineered for efficiency and precision in industrial surface preparation, these machines offer robust construction, high-performance blast wheels, and advanced dust collection systems.
Technical Specification Sheet Of Airless Shot Blasting Machine-Hanger Type
Particulars | AT-100-50-4W | AT-150-50-4W | AT-200-60-6W | AT-240-100-8W | AT-300-120-10W |
---|---|---|---|---|---|
Passage Opening (Width X Height) in mm |
1000 X 500 | 1500 X 500 | 2000 X 600 | 2400 X 1000 | 3000 X 1200 |
Size of Blast Wheel | 151⁄2 x 21⁄2 | 151⁄2 x 21⁄2 | 151⁄2 x 21⁄2 | 151⁄2 x 21⁄2 | 151⁄2 x 21⁄2 |
No. of Blast Wheel | 4 | 4 | 6 | 8 | 10 |
Power of Blast Wheel | 15 HP | 20 HP | 20 HP | 20 HP | 20 HP |
Approx. Shots Flow Rate | 10 | 12 | 12 | 12 | 12 |
Shot Velocity (Mtrs./Sec.) | 70-75 Mtrs./Sec. | 70-75 Mtrs./Sec. | 70-75 Mtrs./Sec. | 70-75 Mtrs./Sec. | 70-75 Mtrs./Sec. |
Shots Consumption | Approx.0.15 Kgs./Hr. /Wheel/HP |
Approx.0.15 Kgs./Hr. /Wheel/HP |
Approx.0.15 Kgs./Hr. /Wheel/HP |
Approx.0.15 Kgs./Hr. /Wheel/HP |
Approx.0.15 Kgs./Hr. /Wheel/HP |
Conveyor Speed (Variable) | 0.5 - 3.0 Mtr./Min | 0.5 - 3.0 Mtr./Min | 0.5 - 3.0 Mtr./Min | 0.5 - 3.0 Mtr./Min | 0.5 - 3.0 Mtr./Min |
Roller Pitch | 900 | 900 | 900 | 900 | 900 |
No. of Roller Conveyor Drive | 2 | 2 | 2 | 2 | 2 |
Initial Charge of Shots | 1500 Kgs. | 2000 Kgs. | 3000 Kgs. | 4000 Kgs. | 5000 Kgs. |
Seperator | Rotary Screen Seperator 1000mm lip width |
Rotary Screen Seperator 1000mm lip width |
Rotary Screen Seperator 1000mm lip width |
Rotary Screen Seperator 1000mm lip width |
Rotary Screen Seperator 1000mm lip width |
Seperation Principal | Through Air Current | Through Air Current | Through Air Current | Through Air Current | Through Air Current |
Descaling Effect | SA 2 1/2 to SA 3 | SA 2 1/2 to SA 3 | SA 2 1/2 to SA 3 | SA 2 1/2 to SA 3 | SA 2 1/2 to SA 3 |
Initial Rust Degree | A-B | A-B | A-B | A-B | A-B |
Type of Dust Collector | Pleated Bag | Pleated Bag | Pleated Bag | Pleated Bag | Pleated Bag |
CFM of Dust Collector | 4000 | 6000 | 10000 | 12000 | 16000 |
Shots Blown-off Device | Provided | Provided | Provided | Provided | Provided |
Cost of Airless Tunnel Type Shot Blasting Machine
Discover our range of Airless Tunnel Type Shot Blasting Machines, designed to optimize industrial surface preparation with precision and efficiency. These machines are available in various configurations, catering to diverse manufacturing requirements. The price ranges in between ₹20 lakh to ₹60 lakh
The cost varies based on factors such as machine size, capacity, features, and customization options. Our machines are engineered for durability and performance, equipped with high-performance blast wheels, efficient dust collection systems, and user-friendly controls. Whether you're in automotive, aerospace, or general manufacturing, our equipment delivers reliable results to enhance productivity and quality.
For detailed pricing information and to discuss your specific needs, please contact our sales team. We are committed to providing tailored solutions that meet your operational goals and budget requirements.
Applications of Airless tunnel type shot blasting machine
Airless tunnel type shot blasting machines find a wide range of applications across various industries due to their efficiency in surface preparation, cleaning, and finishing. Here are some specific applications where these machines are commonly used:
- Automotive Industry: Used for cleaning automotive components such as engine blocks, cylinder heads, brake components, and chassis parts to remove rust, scale, and old coatings before painting or re-coating. Ensures proper adhesion of coatings by creating a clean, roughened surface texture on automotive body panels and parts.
- Aerospace Industry: Shot blasting is used to clean aerospace components like turbine blades, landing gear, and fuselage sections to remove contaminants and prepare surfaces for inspection, repair, or painting. Essential for creating precise surface profiles on aircraft components for adhesive bonding and coating applications.
- Shipbuilding and Marine Industry: Shot blasting is employed to remove rust, scale, and old coatings from ship hulls, decks, and structural components. Ensures proper surface preparation for applying marine coatings to enhance corrosion resistance and durability in harsh marine environments.
- Construction and Infrastructure: Used to prepare concrete surfaces for overlays, coatings, and repairs by removing laitance, contaminants, and creating a textured surface for better adhesion. Shot blasting cleans and prepares steel structures such as bridges, beams, and columns, removing corrosion and old coatings before re-painting or maintenance.
- Foundries and Metalworking: Essential for cleaning castings, forgings, and welded components to remove sand, scale, and surface defects. Shot blasting can impart specific surface textures or finishes on metal parts for aesthetic appeal or functional purposes.
- Oil and Gas Industry: Shot blasting is used to clean and prepare pipeline surfaces before applying corrosion protection coatings, ensuring longevity and integrity of the pipeline infrastructure. Used for cleaning and reconditioning equipment such as tanks, vessels, and valves to extend operational life and maintain efficiency.
- Railway Industry: Shot blasting cleans and prepares railway track components such as rails and switches, removing rust and contaminants to maintain safety and operational efficiency. Used for cleaning and preparing railway rolling stock components for maintenance and re-painting.
- General Manufacturing and Maintenance: Effective in removing rust, scale, and contaminants from various industrial components and machinery. Removes burrs, sharp edges, and flash from machined parts to ensure quality and dimensional accuracy.
Uses of Airless tunnel type shot blasting machine
Airless tunnel type shot blasting machines are used in various industries primarily for surface preparation and cleaning of metal and non-metallic surfaces. Here are some of their key uses and applications:
- Surface Cleaning and Preparation: These machines are extensively used to clean and prepare surfaces before coating, painting, or further processing. They effectively remove rust, scale, old coatings, and contaminants from surfaces, ensuring better adhesion of subsequent coatings.
- Rust and Corrosion Removal: They are particularly useful for removing rust and corrosion from metal surfaces, especially in industries dealing with older equipment, machinery, or infrastructure that require refurbishment.
- Surface Texturing: Shot blasting can impart specific textures or finishes to surfaces, which can enhance aesthetic appeal or improve functional properties like grip or adhesion.
- Deburring and Deflashing: In manufacturing processes, particularly in automotive and aerospace industries, these machines are used to remove burrs, flash, and sharp edges from machined parts or castings, ensuring dimensional accuracy and smooth surfaces.
- Surface Roughening for Bonding: They can create a roughened surface profile on materials like concrete or metal, which is beneficial for enhancing bonding strength when applying coatings, adhesives, or overlays.
- Selective Coating Removal: They can selectively remove coatings from specific areas without damaging the underlying substrate, which is useful for repair and maintenance of painted or coated surfaces.
- Preparation for Non-Destructive Testing (NDT): Shot blasting can prepare surfaces for non-destructive testing methods by ensuring a clean and uniform surface, allowing accurate inspection and detection of defects.
Tunnel Type Shot Blasting Machines Manufacturer
Process & System stands as the premier manufacturer of airless tunnel type Shot Blasting Machines in India. Our expertise lies in producing and supplying a wide range of shot blasting equipment, including portable shot blasting machines, tumblast shot blasting machines, swing table type shot blasting machine and automatic shot blasting machines, all offered at competitive prices across India.
Discover our tunnel type shot blasting machines at affordable rates in key cities such as Jodhpur, Jaipur, Bhiwadi, Alwar, Faridabad, Gurgaon, Noida, Ghaziabad, Agra, Mumbai, Pune, Kolhapur, Solapur, Chennai, Bangalore, Madurai, Coimbatore, and Kolkata, ensuring top quality and customer satisfaction.
FAQ
What is an airless tunnel type shot blasting machine?
An airless tunnel type shot blasting machine is a piece of equipment used to clean, strengthen, or polish metal surfaces by propelling abrasive material (shot) at high speeds using a centrifugal wheel rather than compressed air.
What types of materials can be processed in an airless tunnel type shot blasting machine?
This machine is suitable for a variety of materials, including steel, aluminum, cast iron, and other metal alloys. It is commonly used for cleaning, descaling, and surface preparation of metal parts before painting or coating.
What are the benefits of using an airless tunnel type shot blasting machine?
The benefits include high efficiency, uniform surface treatment, reduced labor costs, and the ability to handle continuous and large-scale production processes. It also offers excellent surface preparation for subsequent coating or painting processes.
Can an airless tunnel type shot blasting machine be used for delicate or small parts?
Yes, with proper adjustment of the blast parameters and careful selection of abrasive media, these machines can be used for delicate or small parts. However, it's essential to ensure that the parts can withstand the blasting process without being damaged.
How can I increase the efficiency of my airless tunnel type shot blasting machine?
Efficiency can be increased by optimizing the blast wheel speed and angle, using the right abrasive media, maintaining consistent media flow, and ensuring regular maintenance of all components. Implementing automated controls and monitoring systems can also enhance efficiency.
